產品規格

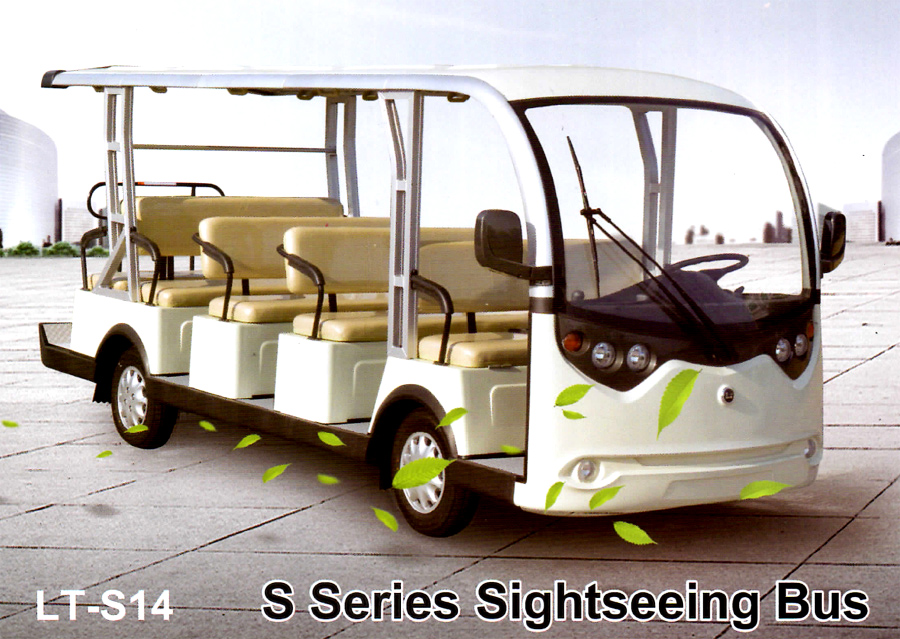

| Model： | LT-S14 |
|---|---|
| Controller | US made Curtis controller |
| Battery | Trojan / maintenance free battery |
| Motor | 72V / 6.3KW |
| Charger | 72V / 25A |
| Charging Time | Less than 12 hours ( discharging rate 80% ) |
| Glass | Sandwich glass |
| Seat | leather |
| Sun Roof | PP Vacunm forming |
| Floor | Autiskid rubber floor |
| Rear Mirror | Handoperated, both side |
| Steering | Dual automotive-style strut and self-adjust rack-and pinion steering |
| Dc/light/signal | Front light、turning light、fog light、rear light、horn、Buzzer |
| Body | Fornt bady adopts "PP" alloy automobile special engineering material The driving baxadopts fiber glass material |
| Dash Board | Fiberglass dash board, Voltage Indicator 48V、Switch Head Lights、Switch-Indicators Right/Left、key switch、Switch-Forward/Reverse。 |
| Braking System | Front disc and rear dram, four-wheel hydraulic brake+hand brake |
| Front Axle And Suspension | Independent suspension, helical spring + cylinder hydraulic shock absorption |
| Rear Axle And Suspension | Integral type transaxle, gear ratio 12:31:1, semi-independent transaxle, leaf spring |
| Tire Diameter | 535mm |
| Length*width*height | 4960*1480*1980mm |
| Loading Passenger | 14 |
| Max Speed Km/h | 30-40km |
| Mileage/km | 80-100km ( flat road ) |
| Max Climbing Ability | 20% |
| Mini Turning Radium (M) | ≦5.5m |
| Mini Ground Clearance | 180mm |
| Wheel Base | Front 1180 / back 1200mm |
| Braking Distance | 3.5M |
